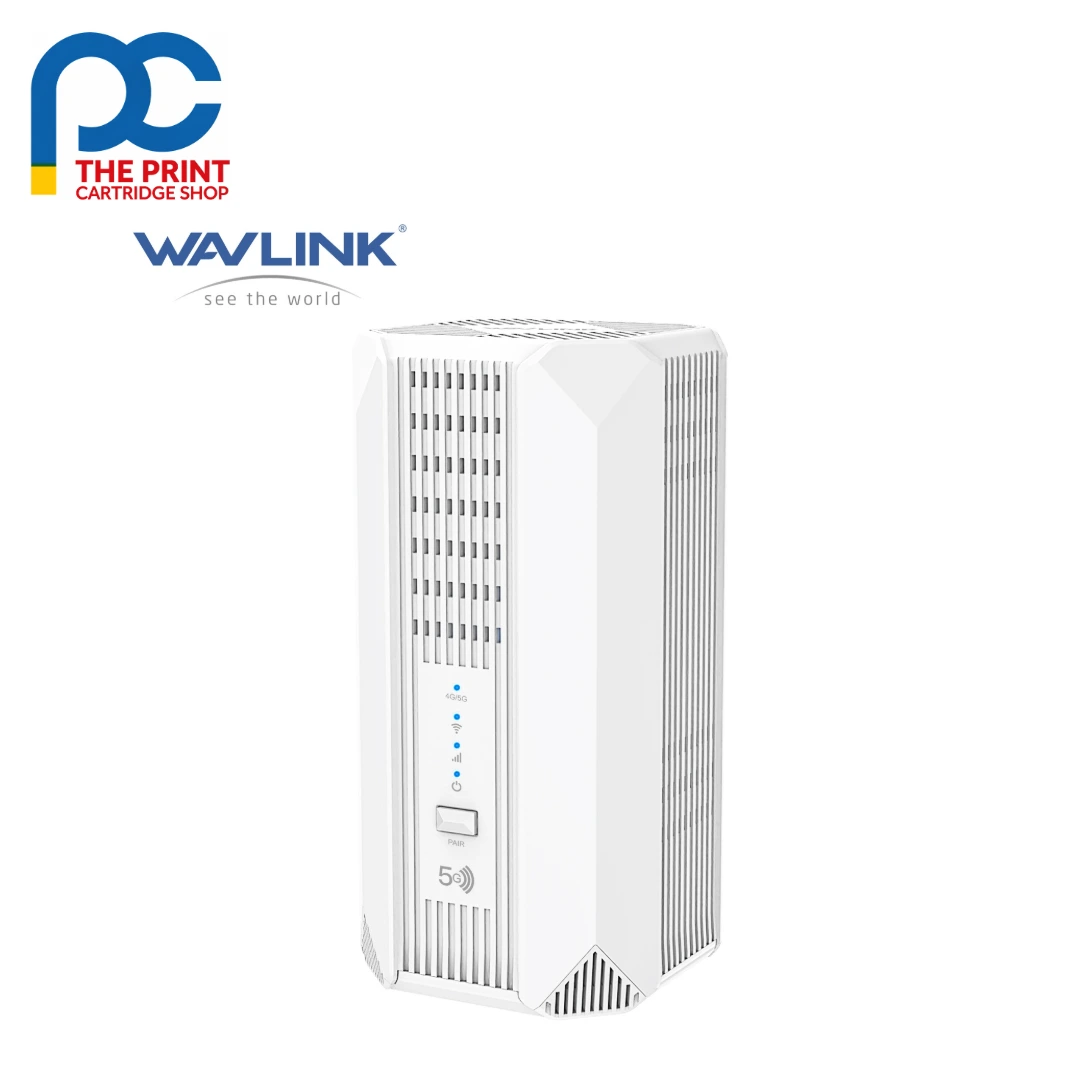

The Wavlink WNF100X3NR is a 5G NR CPE router that turns a 5G or 4G mobile data plan into fast WiFi 6 for your home or office. Insert a nano SIM card for 5G speeds of up to 3.4Gbps with SA/NSA dual-mode support, then share it over AX3000 dual-band wireless rated at 573Mbps on 2.4GHz plus 2402Mbps on 5GHz, with two gigabit Ethernet ports for wired devices.
Where a fixed line is slow, expensive or not available, a 5G router can provide broadband-class speeds from the mobile network. The Wavlink WNF100X3NR lets you choose router mode, 5G/4G router mode or a mix mode that uses both the WAN port and the cellular connection. Nine internal omnidirectional antennas with beamforming help spread a stable signal across up to 2000 square feet, and up to 128 devices can connect at once. WPA3/WPA2 encryption and built-in VPN support add security for home and work use.
Who is the Wavlink WNF100X3NR for?
The Wavlink WNF100X3NR suits homes and offices in areas without good fixed broadband, renters who want an internet connection that moves with them, and temporary setups such as events or project sites. A typical setup is to insert an active nano SIM, connect the power adapter and log in to the web interface at wavlogin.link or 192.168.40.1 to finish configuration. Connect a PC or network switch to the gigabit LAN port, and if signal is weak indoors you can fit optional external 5G antennas to the two TS-9 ports. Check with your mobile carrier that your plan and network suit the router.
Wavlink WNF100X3NR key features
- 5G NR with SA/NSA support: Supports both standalone and non-standalone 5G networks with speeds of up to 3.4Gbps on 5G NR, and can also work on 4G, depending on your carrier, plan and local coverage.
- AX3000 dual-band WiFi 6: IEEE 802.11ax wireless delivers combined speeds of up to 2975Mbps, made up of 573Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band, for streaming, downloads and video calls.
- Flexible router modes: Run it as a standard router, a 5G/4G router or in mix mode using both the wired WAN and the cellular link. One 1000Mbps WAN/LAN port and one 1000Mbps LAN port are provided.
- Beamforming and wide coverage: Nine internal omnidirectional antennas and beamforming technology help reduce dead zones, with coverage of up to 2000 square feet and support for up to 128 connected devices.
- VPN and strong security: WPA3/WPA2 mixed, WPA2-PSK and WPA/WPA2-Enterprise security are supported, plus OpenVPN, L2TP, PPTP and WireGuard VPNs, with WireGuard rated at up to 300Mbps.
- Easy mesh expansion: The PAIR button makes it simple to add compatible mesh units for wider WiFi coverage, while the web-based management page handles setup and day-to-day network settings.
Wavlink WNF100X3NR specifications
| Model | WL-WNF100X3NR-B |
|---|---|
| Cellular | 5G NR, SA/NSA dual mode, up to 3.4Gbps; 5G/4G router mode |
| Wireless standards | IEEE 802.11b/g/n/a/ac/ax (WiFi 6) |
| WiFi speed | 2.4GHz 573Mbps + 5GHz 2402Mbps (AX3000) |
| Ethernet ports | 1 x WAN/LAN1 (1000Mbps), 1 x LAN2 (1000Mbps) |

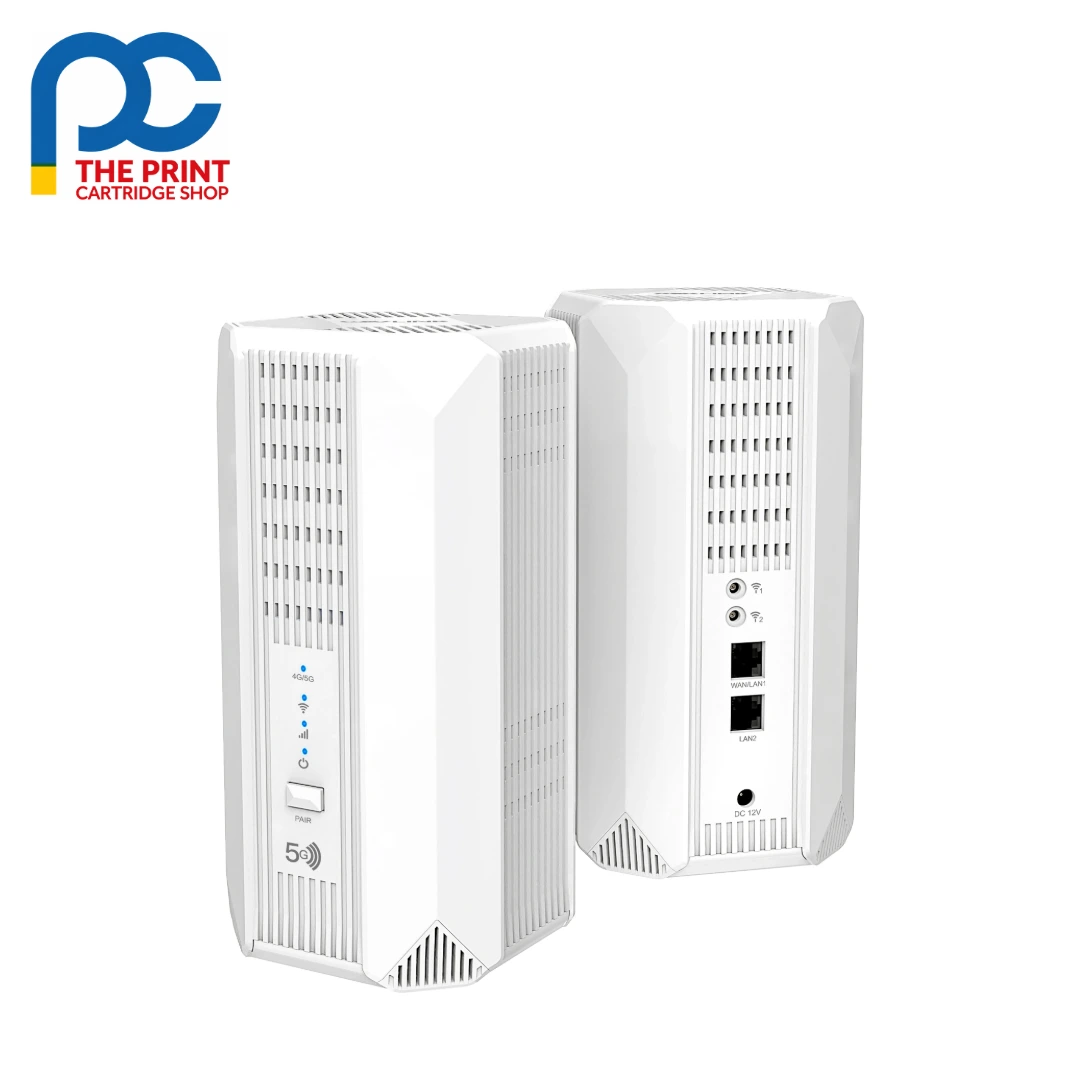

| Other ports | 1 x Nano SIM card slot, 2 x external 5G antenna ports (TS-9), 1 x DC power |
| Antennas | 9 x internal omnidirectional, beamforming |
| Wireless security | WPA3/WPA2 mix, WPA2-PSK, WPA/WPA2 PSK mix, WPA/WPA2-Enterprise |
| VPN | OpenVPN, L2TP, PPTP, WireGuard (up to 300Mbps) |
| Coverage / devices | Up to 2000 sq ft, up to 128 devices |
| Buttons | 1 x PAIR (2s), 1 x RESET (6s) |
| LEDs | 4G/5G, WiFi, signal strength, power |
| Power adapter | DC 12V/2A, 24W |
| Dimensions | 10.5 x 10.5 x 20 cm (L x W x H) |
Full technical details are available on the official Wavlink product page.
What’s in the box with the Wavlink WNF100X3NR
- 1 x Wavlink WNF100X3NR 5G NR CPE router
- 1 x Power adapter
- 1 x Ethernet cable
- 1 x Quick start guide
Wavlink WNF100X3NR FAQs
What SIM card does the Wavlink WNF100X3NR take?
It has a nano SIM card slot. Use a SIM with an active 5G or 4G data plan, and check with your carrier that its network and plan suit a home router before you buy. Actual speeds depend on your carrier and signal.
Does the Wavlink WNF100X3NR work with a fixed internet connection?
Yes. Router mode uses the 1000Mbps WAN/LAN port with a wired connection, and mix mode can use both the WAN port and the 5G/4G cellular connection, so you can choose what suits your location.
How do I set up the router?
Insert the nano SIM, connect power, then open the web interface at wavlogin.link or the default IP 192.168.40.1 from a connected phone or computer. The included quick start guide walks you through the steps.
Can I add external antennas?
Yes. The router has nine internal antennas and also two external 5G cellular antenna ports with TS-9 connectors, which can help if the mobile signal at your location is weak. External antennas are not listed as included.
Why buy the Wavlink WNF100X3NR from The Print Cartridge Shop
We are an Australian online store, and every Wavlink WNF100X3NR we sell is a genuine Wavlink product. Orders are packed within 1–2 business days and sent with tracking to every Australian state under our shipping policy. You can return a change-of-mind purchase within 30 days under our returns policy, and faulty items are covered by the Australian Consumer Law.
Browse more Wavlink modems and routers or see all products from the Wavlink brand. Not sure the Wavlink WNF100X3NR suits your setup? Contact our team and we will help you check before you order.
