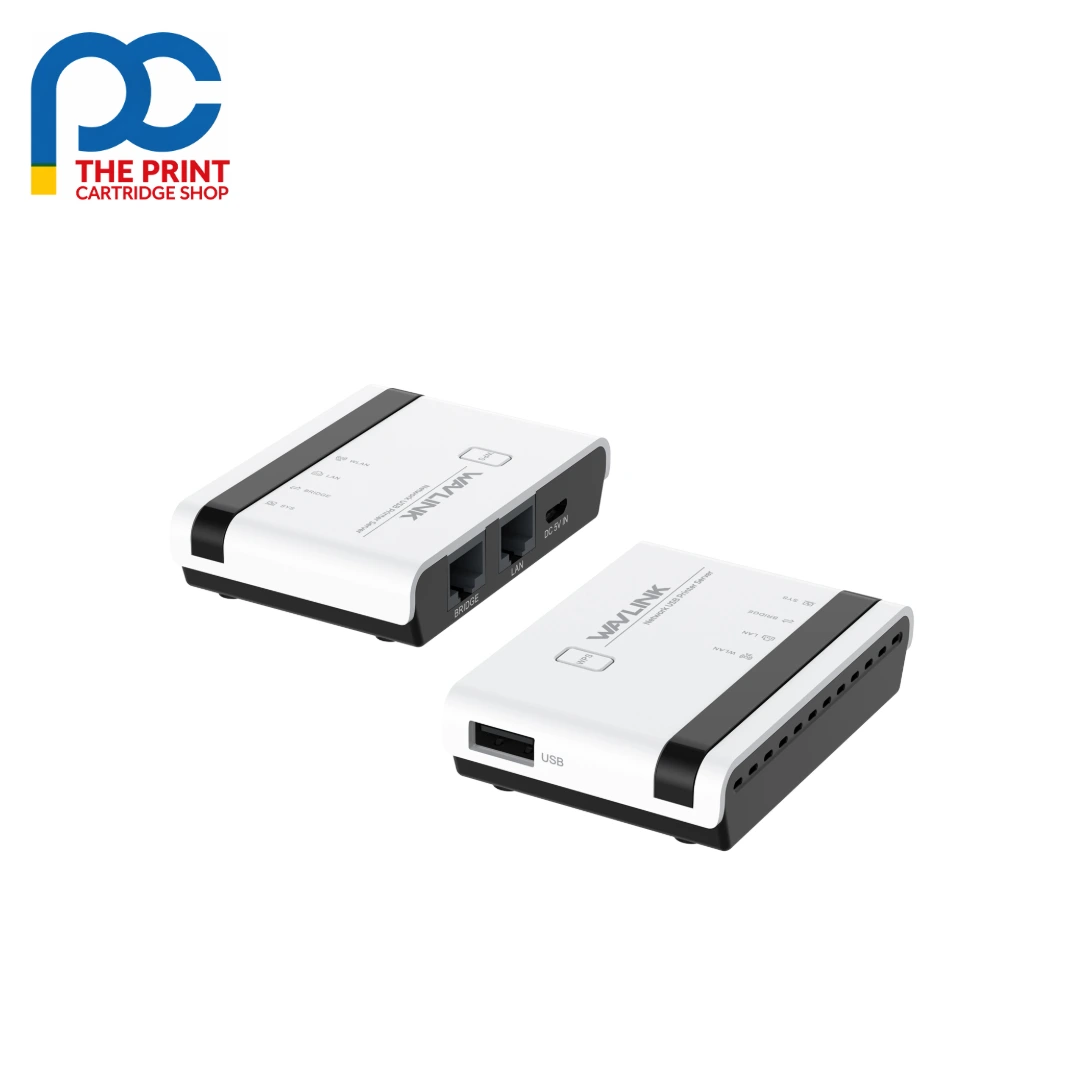

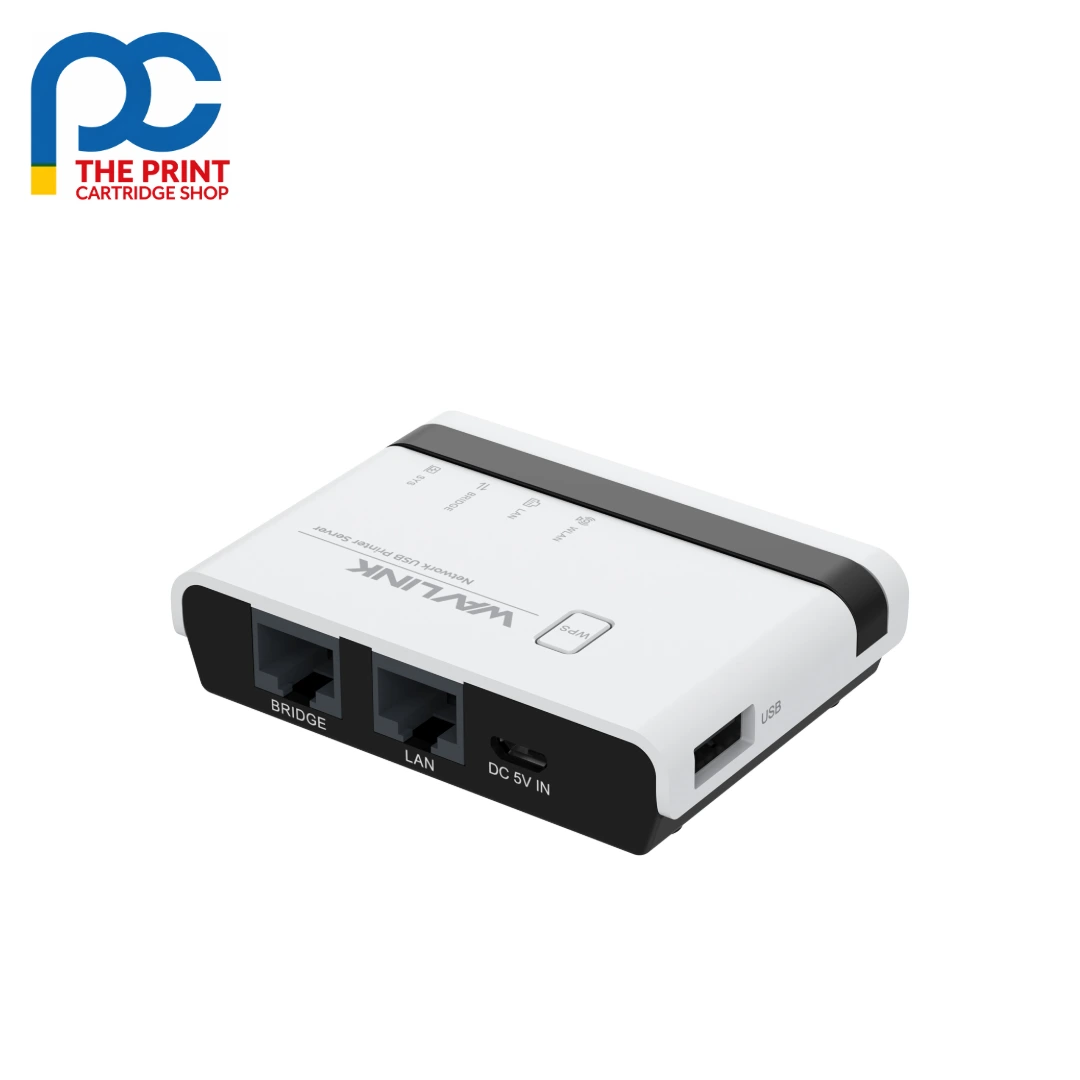

The Wavlink NU516U1 is a wireless N300 USB network print server that turns a standard USB printer into a shared network printer. Connect it to your router by 802.11b/g/n WiFi or the 10/100Mbps LAN port, and every computer on the network can print to it. A second 10/100Mbps bridge port provides wired internet for another device, and a USB hub lets you share up to four printers.
Many reliable USB printers have no network connection, so only one computer can use them and everyone else has to swap cables or email files around. The Wavlink NU516U1 fixes this by putting the printer on your network, so all computers on the same local network can print to it from anywhere in the home or office. It works with most printers that support the RAW protocol, including inkjet, laser, receipt, dot matrix and barcode printers, and needs no extra driver of its own, just the printer's normal driver.
Who is the Wavlink NU516U1 for?
The Wavlink NU516U1 is ideal for homes, small offices, shops, warehouses, e-commerce sellers, schools and government offices that want to share a USB printer. Plug in the 5V power adapter, connect the printer's USB cable, then link the print server to your router via Ethernet or WiFi (WPS makes this quick). Open usblogin.link in a browser to configure it, then add the printer on each Windows or Mac computer using the printer's own driver. Standalone mode lets computers connect to the print server's own WiFi when no router is available.
Wavlink NU516U1 key features
- Share USB printers on your network: Converts a USB printer into a network printer so every computer on the same local network can print to it, with automatic queue printing when several people send jobs at once.
- Wired, wireless or standalone: Connect to your router by 2.4GHz 802.11b/g/n WiFi or the 10/100Mbps LAN port, or use standalone mode where the print server broadcasts its own WiFi for computers to join.
- Bridge port for another device: An extra 10/100Mbps bridge RJ45 port provides wired internet to a nearby end device, such as a desktop computer, extending your network at the same time.
- Up to four printers or drives: Add a USB hub to the USB 2.0 port to share up to four printers or four storage devices. Samba service makes connected USB storage available across the network.
- Easy discovery and HP support: mDNS and SSDP help macOS, Windows and Linux computers find the Wavlink NU516U1 easily, and JetDirect (AppSocket) support makes it particularly simple to work with HP printers.
- WPS and web management: Press WPS for six seconds to pair with your router without typing a password, then configure, monitor and reset the print server from its web interface.
Wavlink NU516U1 specifications
| Model | WL-NU516U1 |
|---|---|
| Wireless | 802.11b/g/n 2.4GHz, N300 |

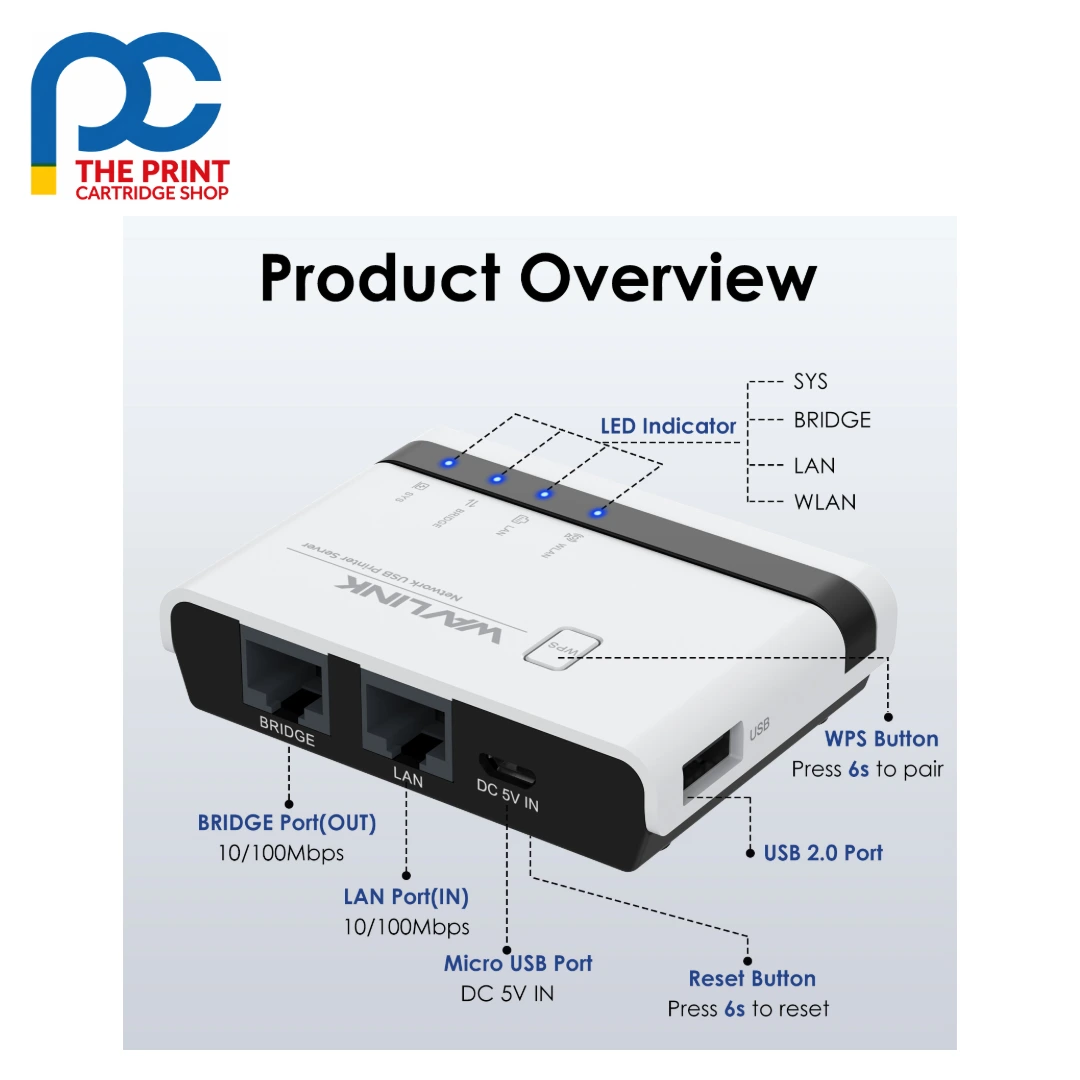

| Ports | 1 x USB 2.0, 1 x 10/100Mbps LAN (to router), 1 x 10/100Mbps Bridge (for end device), 1 x Micro USB (power) |
| Buttons | 1 x WPS, 1 x Reset |

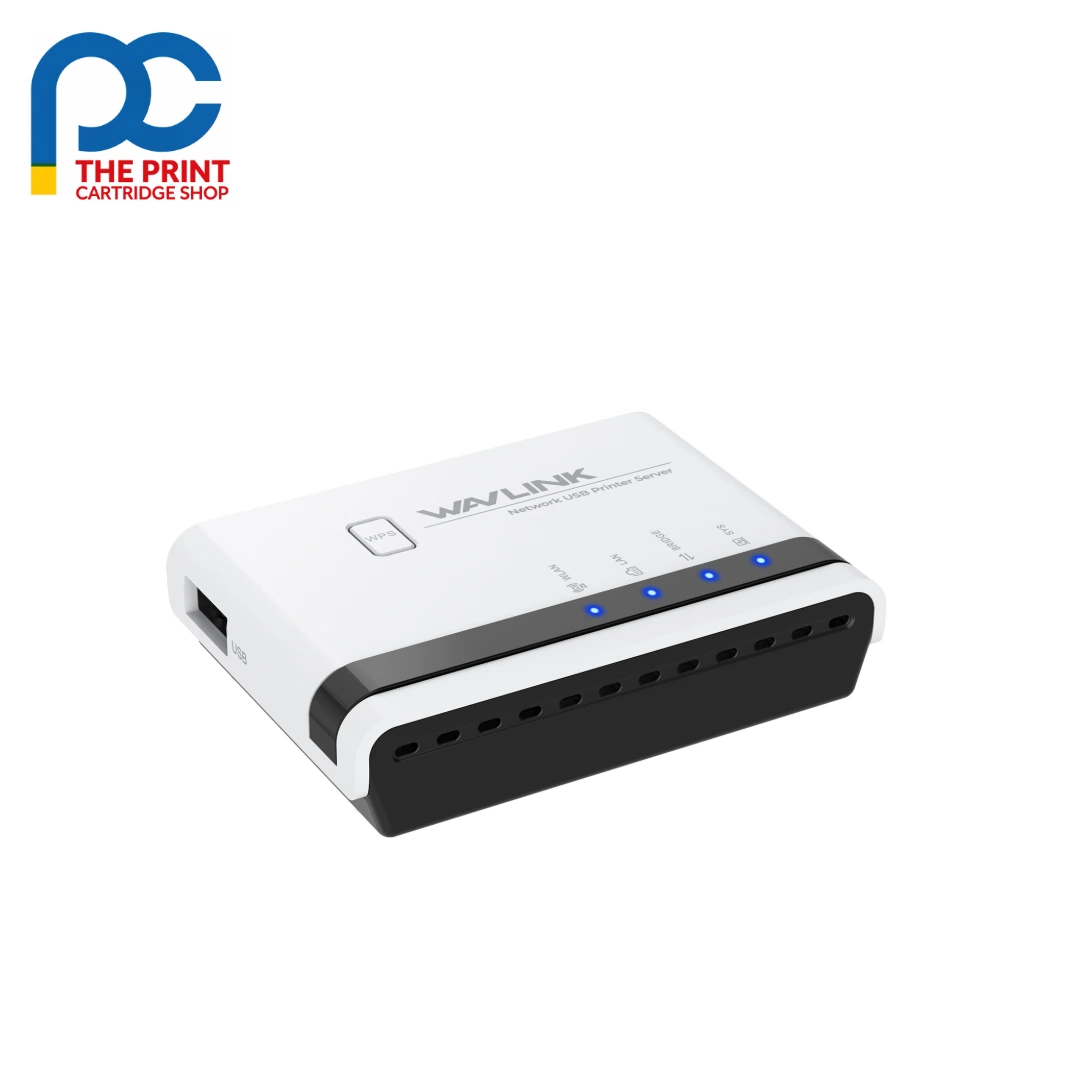

| LEDs | SYS, LAN, Bridge, WiFi |
| Operation modes | Wired, Wireless, Standalone |
| Protocols | RAW, JetDirect (AppSocket), mDNS, SSDP, Samba |
| Printers shared | Up to 4 printers or 4 storage devices via USB hub |
| System requirements | Windows 7/8/10/11/XP, Mac OS |
| Management | Web interface (usblogin.link, default IP 192.168.10.1) |
| Power | 5V/1A adapter via Micro USB |
| Material | PC+ABS, white |
| Dimensions / weight | 7.5 x 5.4 x 1.8 cm, 43g |
Full technical details are available on the official Wavlink product page.
What’s in the box with the Wavlink NU516U1
- 1 x Wavlink NU516U1 wireless USB print server
- 1 x 5V/1A power adapter
- 1 x Ethernet cable
- 1 x Micro USB cable
- 1 x Quick start guide
Wavlink NU516U1 FAQs
Will the Wavlink NU516U1 work with my printer?
It works with most USB printers that support the RAW protocol, including HP, Canon, Epson, Brother and many others. A few models are not supported, such as the Canon LBP2900, 2900+, 3000 and 7200, HP P1108, HP M403D and Epson 1390. Check RAW support before buying if unsure.
Does the Wavlink NU516U1 need a driver?
The print server itself needs no driver. You install your printer's own driver from the manufacturer's website on each computer, then follow the quick start guide to add the printer over the network. Your computer and the print server should be on the same local network.
Can I scan or print from my phone?
No. It supports multi-function printers for printing, but the scanning function is not supported, and printing from phones and tablets is not supported either. It is designed for printing from Windows and Mac computers.
What is standalone mode?
In standalone mode the print server broadcasts its own WiFi network, and computers connect to it directly to print without a router. While connected this way, those computers will not have internet access, so it suits locations with no existing network.
Why buy the Wavlink NU516U1 from The Print Cartridge Shop
We are an Australian online store, and every Wavlink NU516U1 we sell is a genuine Wavlink product. Orders are packed within 1–2 business days and sent with tracking to every Australian state under our shipping policy. You can return a change-of-mind purchase within 30 days under our returns policy, and faulty items are covered by the Australian Consumer Law.
Browse more Wavlink wireless networking equipment or see all products from the Wavlink brand. Not sure the Wavlink NU516U1 suits your setup? Contact our team and we will help you check before you order.
