ASUS B760M-P D4 Intel B760 LGA1700 DDR4 Micro ATX Motherboard (Used)

Name: ASUS B760M-P D4 – Proven LGA1700 Micro ATX Board with DDR4
Brand: ASUS
SKU: ASUS-048
Price: 303.95 AUD
Availability: InStock

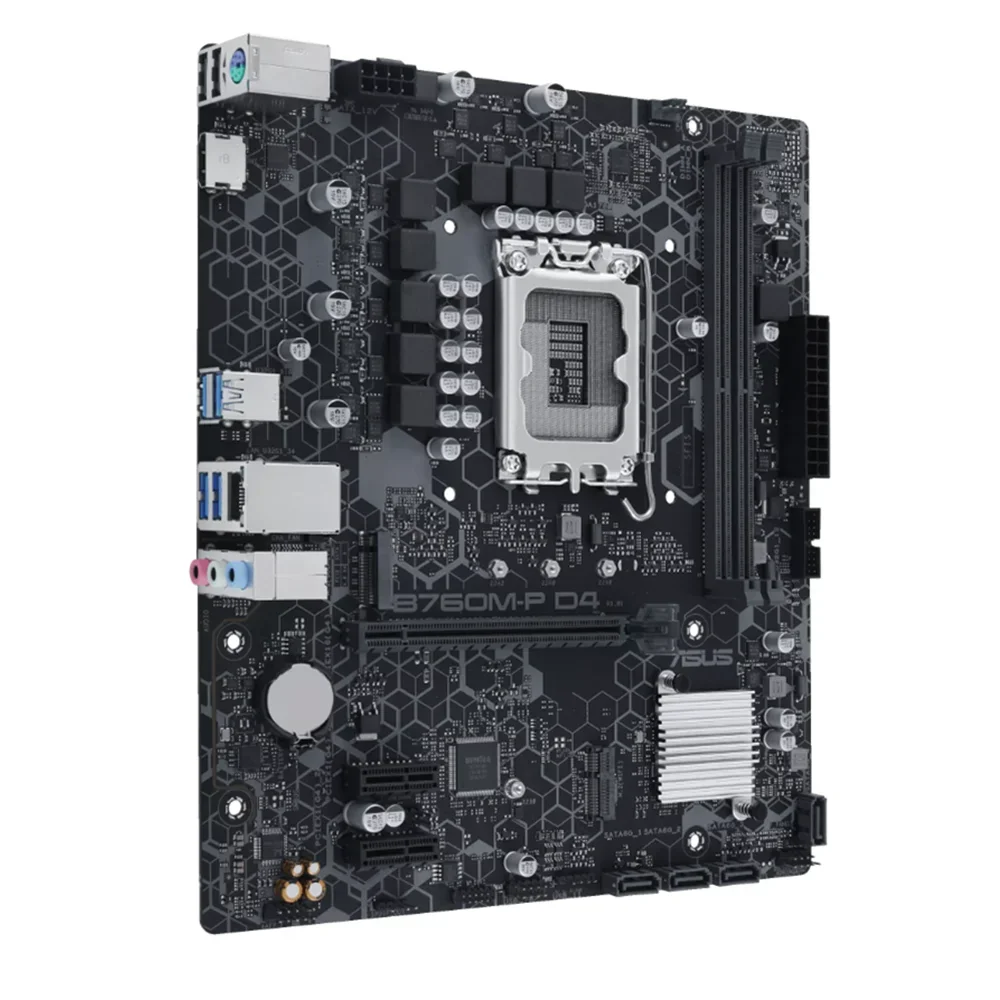

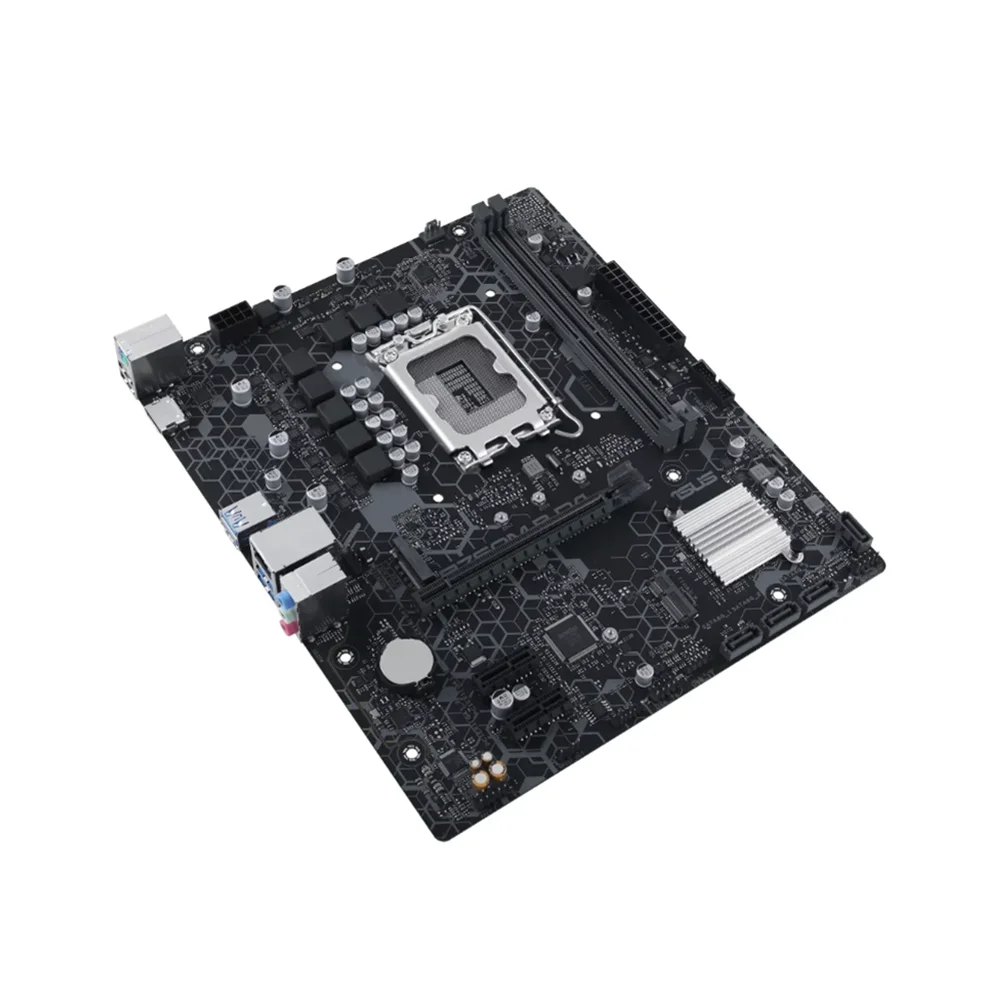

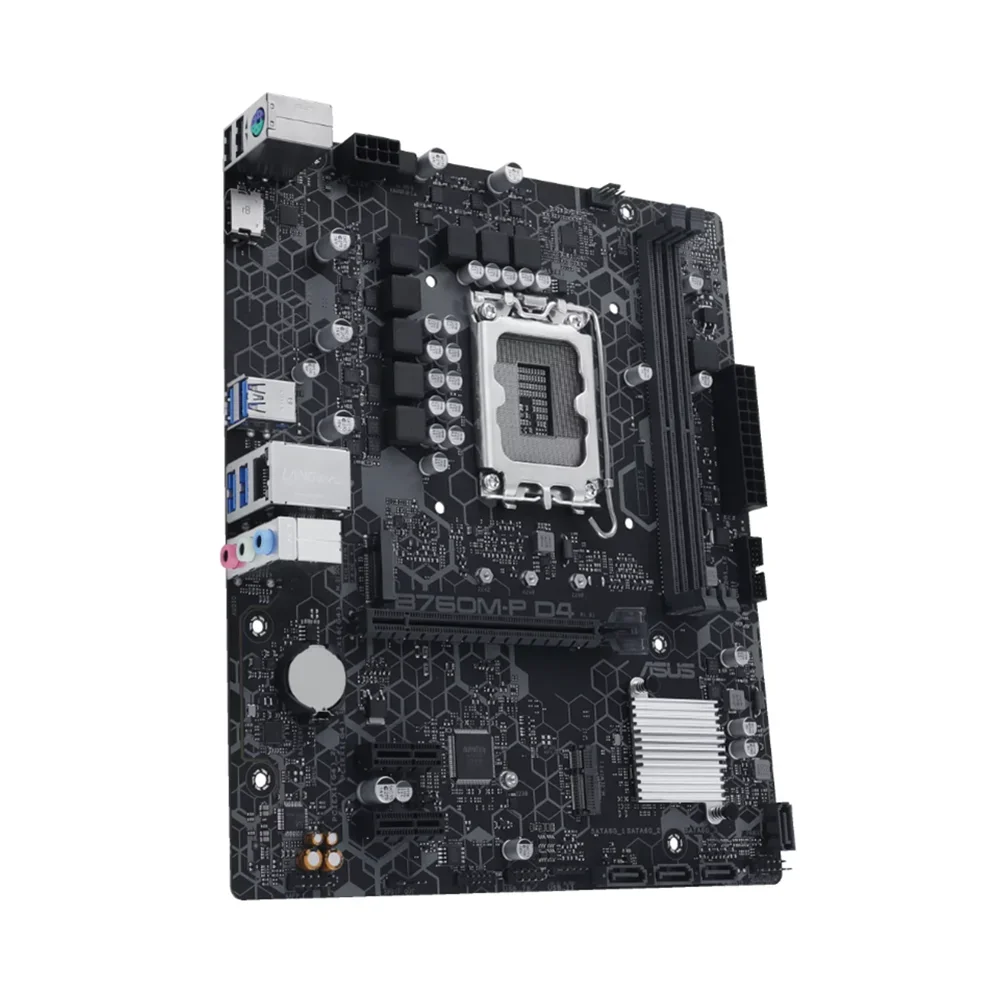

The ASUS B760M-P D4 is an Intel B760 Micro ATX motherboard for 12th, 13th and 14th Gen Core processors on socket LGA1700. It takes up to 64GB of DDR4, has a PCIe 4.0 x16 slot, a PCIe 4.0 M.2 slot, four SATA ports and 2.5Gb Ethernet. This is a pre-owned, tested unit.

$303.95 (Inc. GST)

Guaranteed Safe Checkout




       Posted on Google

   Steven Moore



 Trustindex verifies that the original source of the review is Google. The Print Cartridge Shop offers excellent value for money. Their genuine and compatible options give you flexibility depending on your budget. Everything works perfectly, and delivery was smooth with no issues at all.


      Posted on Google

   Andrew Martin



 Trustindex verifies that the original source of the review is Google. Great online store for printing supplies. I found exactly what I needed for my Epson printer, and checkout was quick and simple. The order arrived earlier than expected. Quality and service both deserve five stars


      Posted on Google

   Richard Johnson



 Trustindex verifies that the original source of the review is Google. Outstanding experience from start to finish. The compatible cartridges work just as well as originals, and I saved a lot of money. Fast shipping and professional service make this company stand out.


      Posted on Google

   John Martinez



 Trustindex verifies that the original source of the review is Google. Very impressed with The Print Cartridge Shop. They have a huge range of cartridges for all major printer brands, and the prices are much better than local stores. Smooth ordering process and reliable delivery across Australia.


      Posted on Google

   James Moore



 Trustindex verifies that the original source of the review is Google. The Print Cartridge Shop is my go-to place for printer supplies. The website is easy to use, prices are competitive, and delivery was faster than expected. The cartridges work perfectly and the quality is excellent


      Posted on Google

   Larry Moore



 Trustindex verifies that the original source of the review is Google. I was impressed with both the quality and affordability of the cartridges from The Print Cartridge Shop. The site makes it easy to find the correct cartridge for your printer, and the checkout process is secure and simple. Excellent value for money and professional service.


      Posted on Google

   David Johnson



 Trustindex verifies that the original source of the review is Google. The Print Cartridge Shop is a one-stop shop for all printing supplies. Whether you need ink, toner, or accessories, The Print Cartridge Shop has it all. The ordering process was smooth, and the cartridge quality exceeded my expectations. Great service and dependable products.


      Posted on Google

   Glory Mhay Ompad



 Trustindex verifies that the original source of the review is Google. The seller is very accommodating with quick responses to all inquiries. Service is fast and reliable. Highly recommended.

Description
Reviews (0)

The ASUS B760M-P D4 is a compact Intel B760 motherboard for LGA1700 processors that lets you keep using affordable DDR4 memory. This is a pre-owned, tested unit. It pairs a PCIe 4.0 x16 slot for a graphics card with a PCIe 4.0 x4 M.2 slot for a fast NVMe SSD, two DDR4 slots for up to 64GB, four SATA ports and Realtek 2.5Gb Ethernet, all on a Micro ATX board.

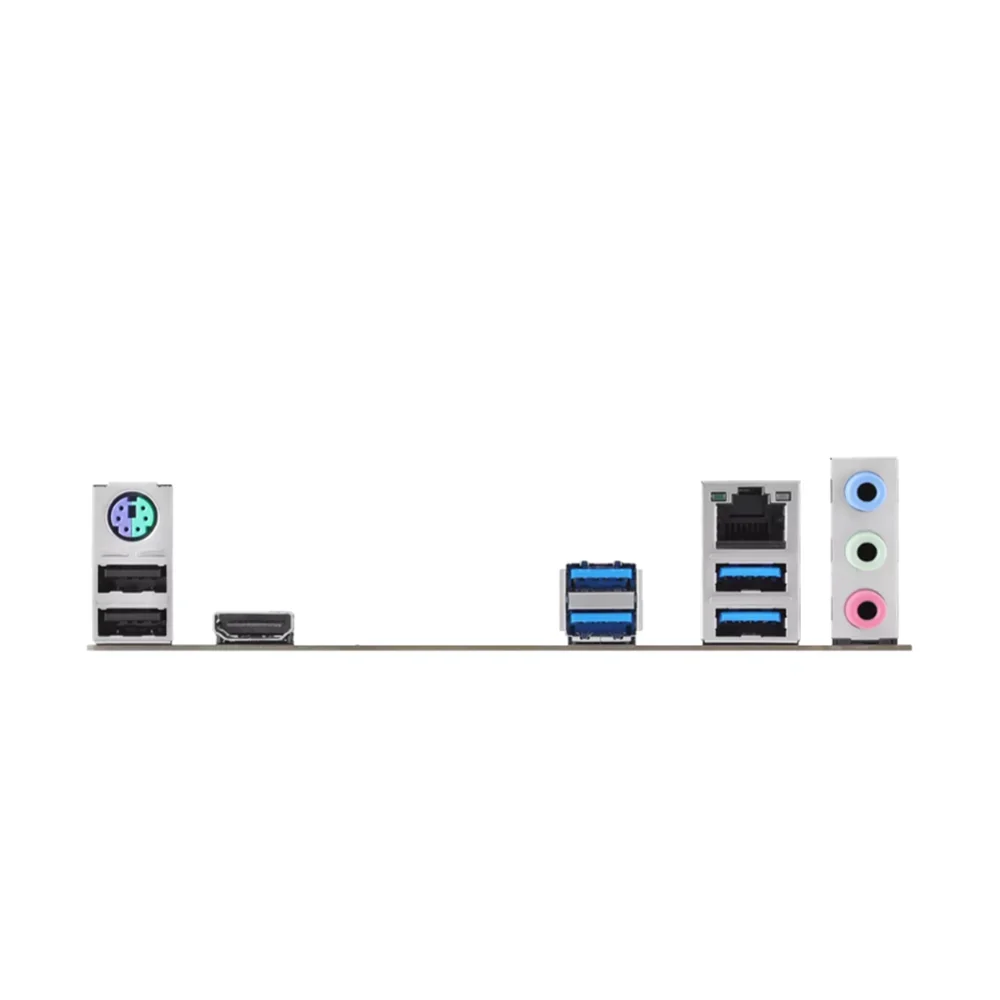

If you are building a budget Intel system or upgrading an older PC while reusing DDR4 sticks, the ASUS B760M-P D4 keeps costs down without giving up current CPU support. Rear connectivity includes four USB 3.2 Gen 1 and two USB 2.0 ports, HDMI for the processor graphics and three audio jacks. An M.2 Key E slot is ready for an optional WiFi module, and ASUS 5X Protection III helps guard against power surges and static.

Who is the ASUS B760M-P D4 for?

The ASUS B760M-P D4 suits home and office builders, students and first-time gamers who want a 12th, 13th or 14th Gen Intel Core system in a smaller Micro ATX case. It is also a sensible pick for anyone moving to a modern Intel platform while keeping the DDR4 memory they already own.

ASUS B760M-P D4 key features

Intel B760 for LGA1700: Supports 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron processors, with Turbo Boost 2.0 and Turbo Boost Max 3.0 depending on the CPU.
DDR4 up to 64GB: Two DIMM slots take up to 64GB of dual-channel DDR4, rated from 2133 up to 5333 MT/s when overclocked, with XMP profile support.
PCIe 4.0 graphics and storage: A PCIe 4.0 x16 slot from the CPU handles your graphics card, and the M.2 slot runs NVMe SSDs at PCIe 4.0 x4.
2.5Gb Ethernet: Realtek 2.5Gb LAN gives faster wired networking than standard gigabit, and an M.2 Key E slot accepts an optional WiFi module.
Flexible expansion: Two PCIe 4.0 x1 slots from the chipset and four SATA 6Gb/s ports with Intel RST RAID support leave room for extra drives and cards.
ASUS 5X Protection III: DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core and a stainless-steel back I/O are designed to help the board last.

ASUS B760M-P D4 specifications

Model	B760M-P D4
Condition	Used – tested and working
Socket / CPU support	Intel LGA1700: 14th, 13th and 12th Gen Core, Pentium Gold, Celeron
Chipset	Intel B760
Memory	2 x DIMM, max 64GB DDR4, 2133 to 5333 MT/s (OC), dual channel, XMP
Expansion slots	1 x PCIe 4.0 x16 (CPU); 2 x PCIe 4.0 x1 (chipset)
Storage	1 x M.2 PCIe 4.0 x4 (2242/2260/2280); 4 x SATA 6Gb/s; Intel RST RAID 0/1/5/10
Display output	1 x HDMI (4K@60Hz)
Networking	Realtek 2.5Gb Ethernet; M.2 Key E slot for optional WiFi module (sold separately)
Rear USB	4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
Audio	Realtek 7.1 HD audio codec, 3 audio jacks
BIOS	128Mb flash ROM, UEFI AMI BIOS
Operating system	Windows 11, Windows 10 64-bit
Form factor	Micro ATX, 24.4 x 21.1cm

Full technical details are available on the official ASUS specifications page. Specifications may vary slightly by region.

What’s in the box

Board only unless otherwise stated; original box and accessories may not be included.

Before you buy

Check that your processor is a 12th, 13th or 14th Gen Intel CPU for socket LGA1700 and that your memory is DDR4, as DDR5 will not fit. Your power supply needs a 24-pin and an 8-pin CPU connector. Some 14th Gen chips may need a BIOS update, so have an older supported CPU handy if needed.

Browse more products in our ASUS motherboards and motherboards range, or contact us if you need help choosing the right part.

Why buy from The Print Cartridge Shop?

When you buy the ASUS B760M-P D4 from The Print Cartridge Shop you are buying from an Australian online store. Every order is sent with tracking, prices are in Australian dollars and include GST, and a tax invoice is supplied with every order. If you have a question before or after you buy, our team is happy to help by email or through our contact page, which makes us a simple choice for home offices, small businesses, gamers and PC builders.

Frequently asked questions

Does the ASUS B760M-P D4 support 14th Gen Intel CPUs?

Yes. ASUS lists support for 14th, 13th and 12th Gen Intel Core processors on LGA1700. Some 14th Gen models may need an updated BIOS before they will boot.

Does the ASUS B760M-P D4 have built-in WiFi?

No. It has Realtek 2.5Gb Ethernet and an M.2 Key E slot, so you can add a compatible WiFi module, which is sold separately.

How much memory can I install?

The board has two DDR4 DIMM slots and supports up to 64GB in dual-channel mode, with XMP for rated memory speeds.

How long does delivery of the ASUS B760M-P D4 take?

Please allow 7–21 business days for delivery anywhere in Australia. We email a tracking number as soon as your order is dispatched.

Is the ASUS B760M-P D4 a genuine ASUS product?

Yes. It is a genuine ASUS product sourced through our international supplier. Because it is imported stock, warranty support is provided by The Print Cartridge Shop rather than ASUS Australia.
